Mining machine

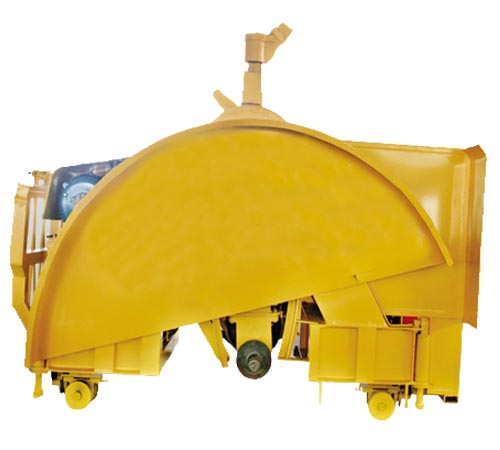

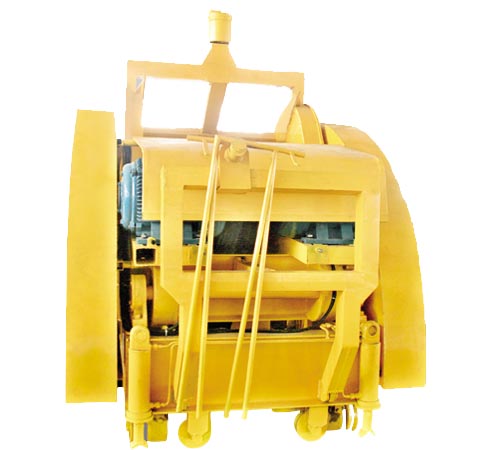

Horizontal quarry cutting machine
- 【Name】Horizontal quarry cutting machine
- 【Model】
- 【Category】mining machine series
- 【Company】DAFON Machinery
- 【Clicks】4119
- 【Time】2020-06-12 10:17:17
Functional properties:
1, horizontal mining machine mechanical structure, hydraulic system, electric integrated automation equipment.
In 2, main shaft after heat treatment ( quenching ) and electroplating, the material hardness and strength, corrosion prevention variant is not easy.
3, saw blade using half-moon lifting track, with hydraulic drive, make the cutting blocks without jitter.
In 4, the hydraulic system adopts the integral type gear pump, speed, no inertia force, longer service life.

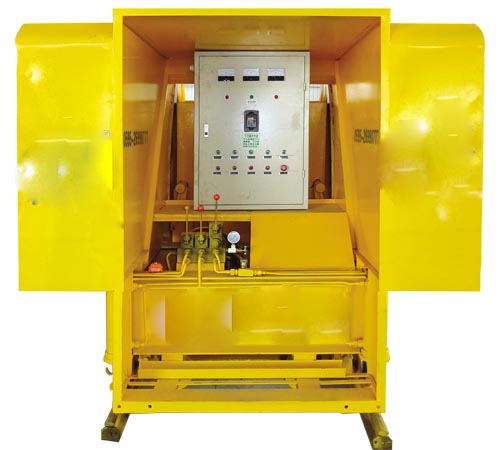

In 5, the main control box is composed of a frequency converter, transformer, AC contactor, a time relay and other main parts to realize automation, effectively control the hydraulic lifting machine, cutting depth, walking speed. Improve machine humanized, operation safety, efficiency.
Technical parameters of Technical Data
1, horizontal mining machine mechanical structure, hydraulic system, electric integrated automation equipment.
In 2, main shaft after heat treatment ( quenching ) and electroplating, the material hardness and strength, corrosion prevention variant is not easy.
3, saw blade using half-moon lifting track, with hydraulic drive, make the cutting blocks without jitter.
In 4, the hydraulic system adopts the integral type gear pump, speed, no inertia force, longer service life.
In 5, the main control box is composed of a frequency converter, transformer, AC contactor, a time relay and other main parts to realize automation, effectively control the hydraulic lifting machine, cutting depth, walking speed. Improve machine humanized, operation safety, efficiency.
Technical parameters of Technical Data
| Body size ( mm ) | 3600*2000*2500 | |
| Diameter of blade ( mm ) | 2200-4400 | |
| Depth of cut ( mm ) | 800-2000 | |
| Cutting width ( mm ) | 1550-1950 | |
| The lifting stroke ( mm ) | 1600 | |
| Machine weight ( T ) | 10 | |
