Mining machine

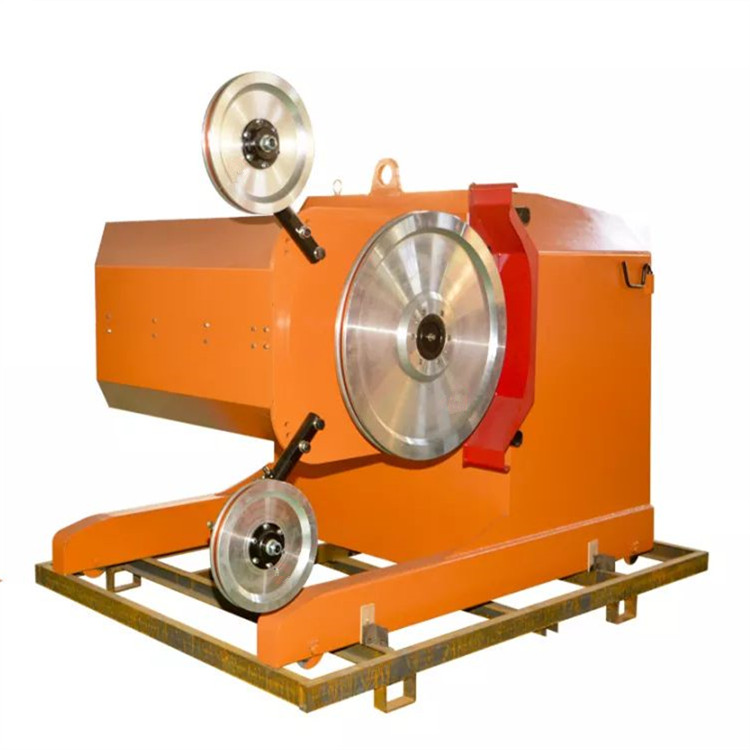

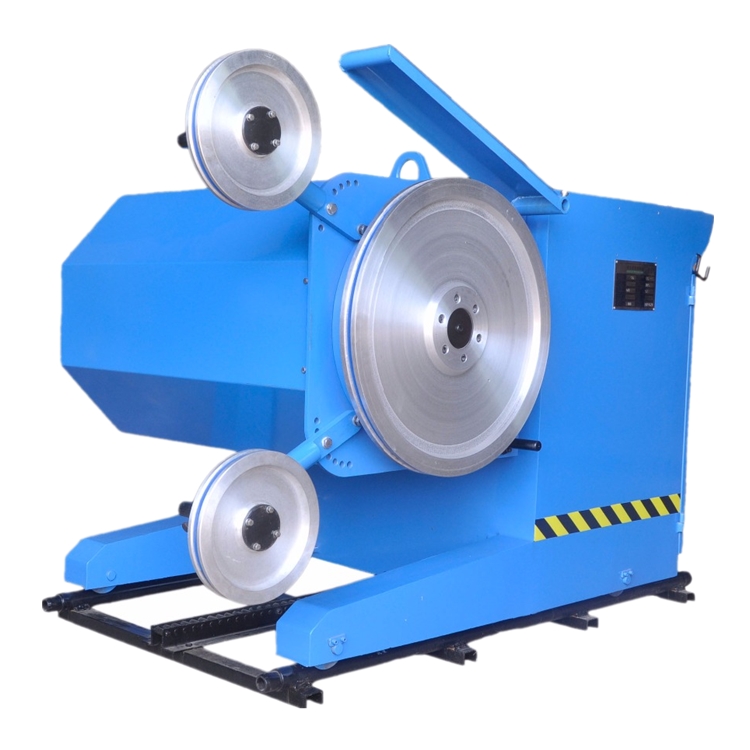

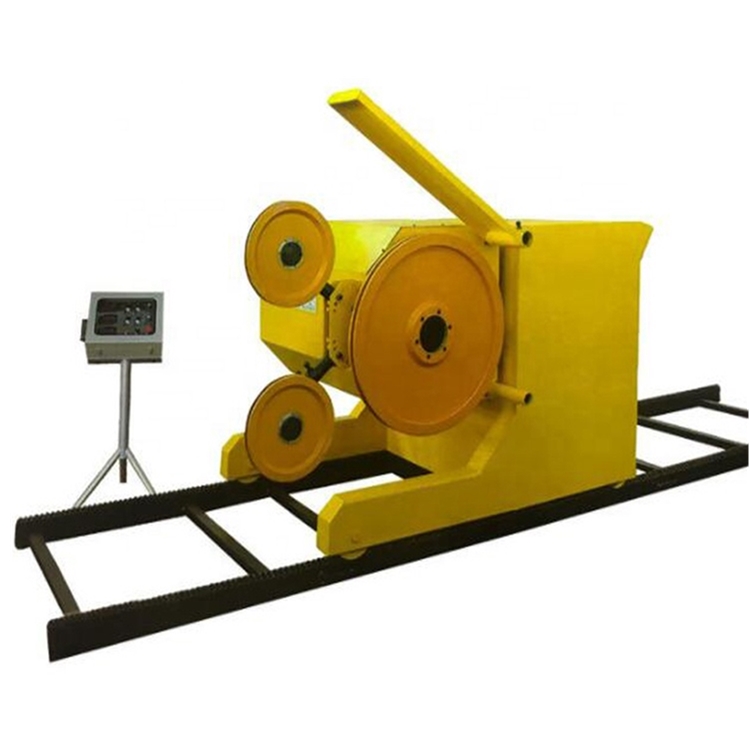

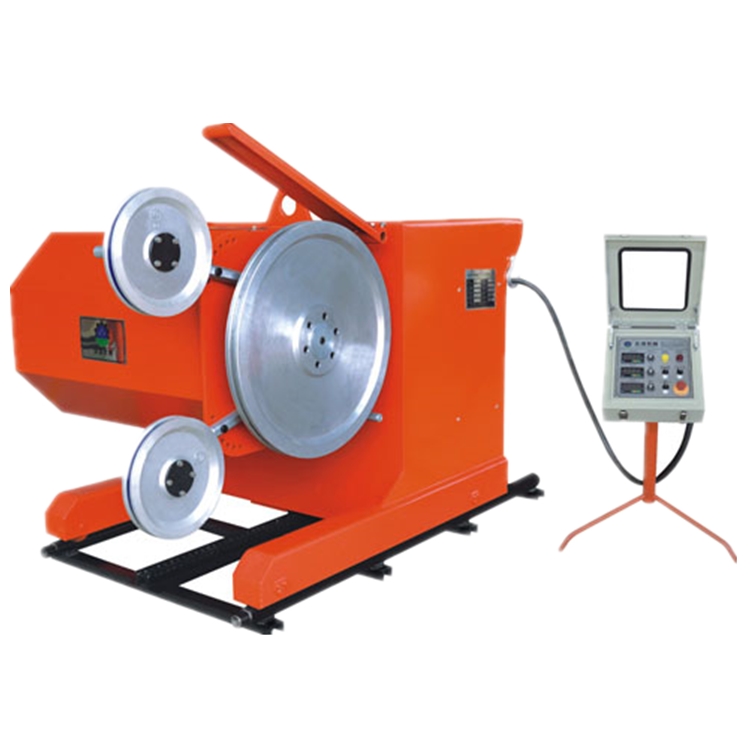

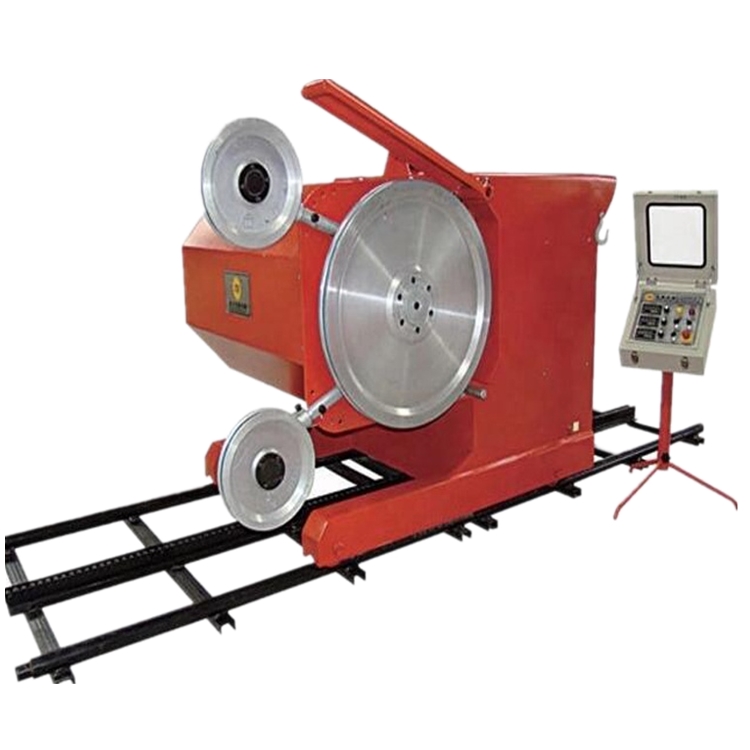

- 【Name】Diamond wire saw cutting machine
- 【Model】
- 【Category】
- 【Company】DAFON Machinery
- 【Clicks】2062
- 【Time】2020-06-12 10:17:45
Technical Data:
|
Model: |
ZY-45G-8P |
ZY-55G-8P |
ZY-75G-8P |
|
Main motor power: |
45KW-8P(60HP-8P) |
55KW-8P(75HP-8P) |
75KW-8P(100HP-8P) |
|
Flywheel diameter: |
Φ800mm |
Φ800mm |
Φ800mm |
|
Wire saw speed: |
0-30m/s |
0-30m/s |
0-30m/s |
|
Max. wire saw length: |
20-80m |
20-100m |
20-120m |
|
Walking motor power: |
0.75KW(1HP) |
1.5KW(2HP) |
1.5KW(2HP) |
|
Lateral moving distance: |
390mm |
500mm |
520mm |
|
Max. lateral cutting distance: |
1700mm |
1900mm |
2050mm |
|
Rotation angle(electric): |
360° |
360° |
360° |
|
Walking speed of machine: |
0-60m/h |
0-90m/h |
0-90m/h |
|
Rail length: |
2m*3+1m |
2m*3+1m |
2m*3+1m |
|
Allowed working temperature: |
-15~+40℃ |
-15~+40℃ |
-15~+40℃ |
|
Dimension: L*W*H: |
2350*1460*1450mm |
2500*1600*1530mm |
2550*1680*1570mm |
|
Net weight: |
3.0T |
3.5T |
4.3T |
Features:
1) 8 poles motor is enough power for cutting more hardness granite.
2) Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
3) The machine is without phase request. It doesn’t need to change or distinguish the power phase. The machine has the following protection functions: diamond wire broken protection, over-loading protection, open-phase protection, terminal limit, and so on.
4) The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It makes the operation and adjustment of the machine more convenient.
5) The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
